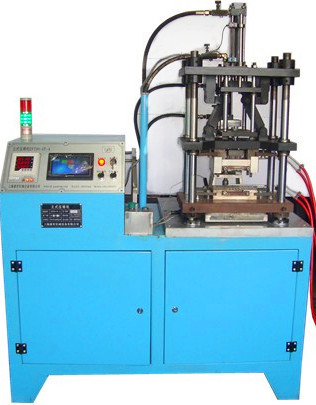

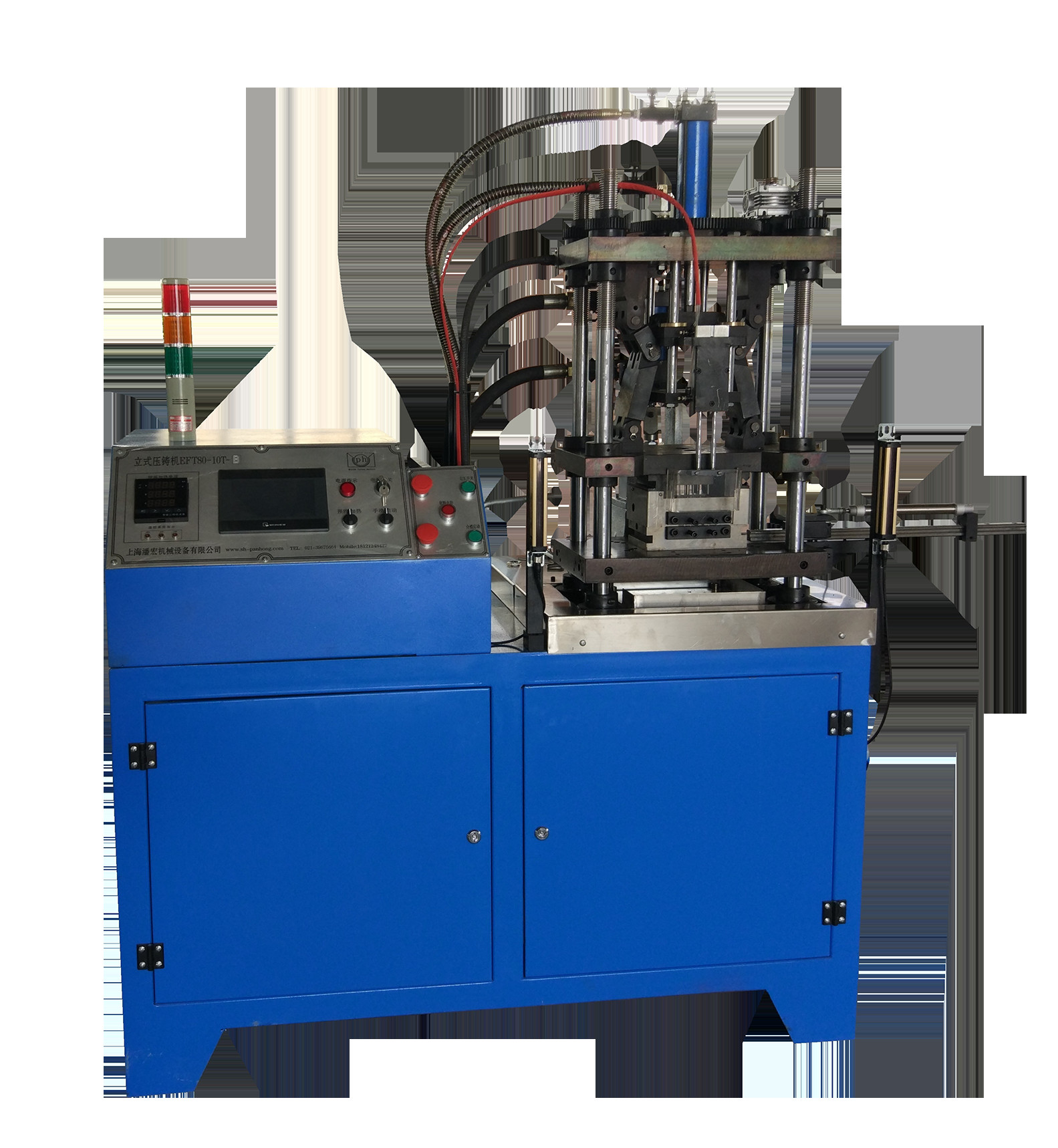

Equipment composition:
The machine is mainly composed of the following eight parts:
1. Melting system: from 9KW electric heating tube (total power of heating tube, PID control generally only takes more than half), then heat zinc alloy pot to 420 ℃,
2. Hydraulic system: composed of vane pump, oil circuit shunt plate, solenoid valve, etc.
3. Mould: Use the original Taiwan unified mould size!
4. Frame parts: mainly welded by 45 # steel plate and thickened square tube, and then derusted, and then subjected to high temperature tempering and shaping, in baking paint treatment, beautiful appearance and stain resistance;
5. Electric control device: It is mainly composed of touch screen, plc control Taiwan PID bidirectional thermostat, contactor, circuit breaker, Taiwan voltage adjustment module and other electrical components and cabinet body.
6. Cooling system: It consists of cooling pumps, pipes, joints, cooling boxes, etc. to cool the die-casting mold.
Main parameters
1. Diameter of die-cast steel wire: ф1 ～ ф3.5 mm
2. The fastest die casting speed: 10 ／ min
3. Oil pump: Taiwan CML brand,
4. Ling Que pump motor: DB-12 (optional)
5. Use power supply:
Voltage: three-phase 380v ± 7% + neutral + ground
Frequency: 50 ± 5 Hz
6. Total capacity: 10 KW
7. Space occupied by equipment after installation: 1145 × 1000 × 1720 mm
8. Equipment weight: 900KG.
